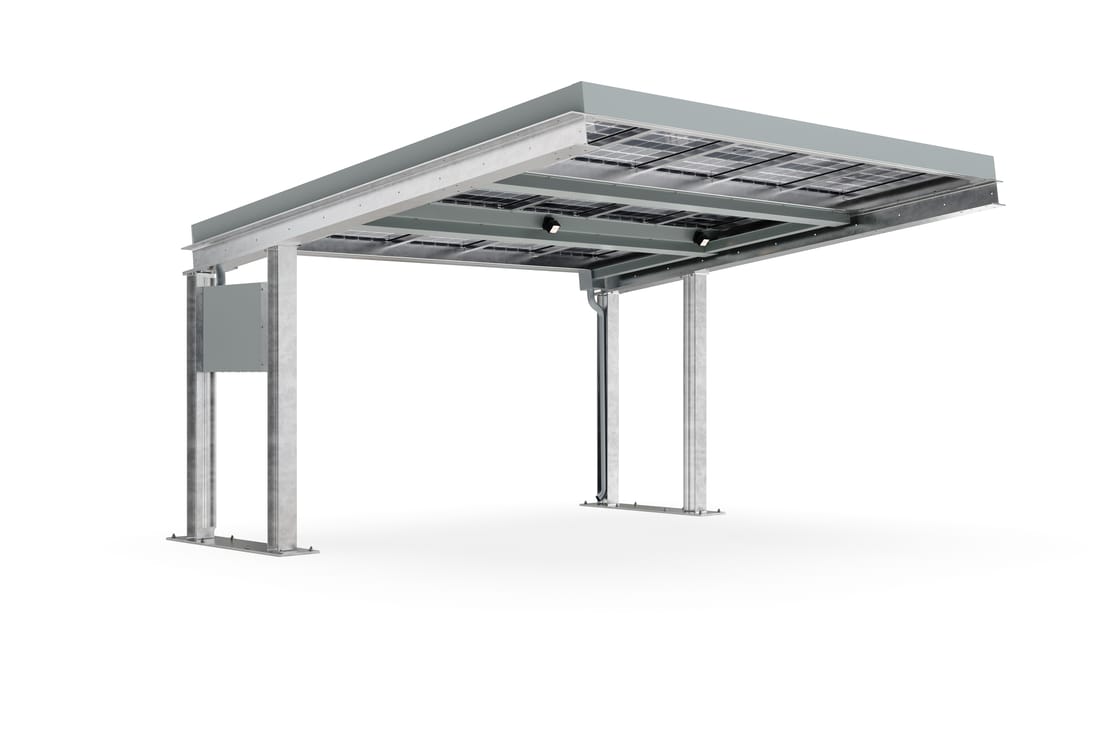

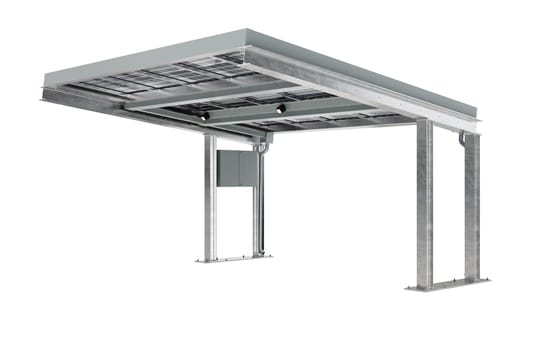

SolarCover Y basic unit

Innovative solar carport made of hot-dip galvanized steel with a roof made of durable 8 mm glass-glass photovoltaic modules.

Artikelnummer: 102200042

Size: 5490 × 3460 × 5070 (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

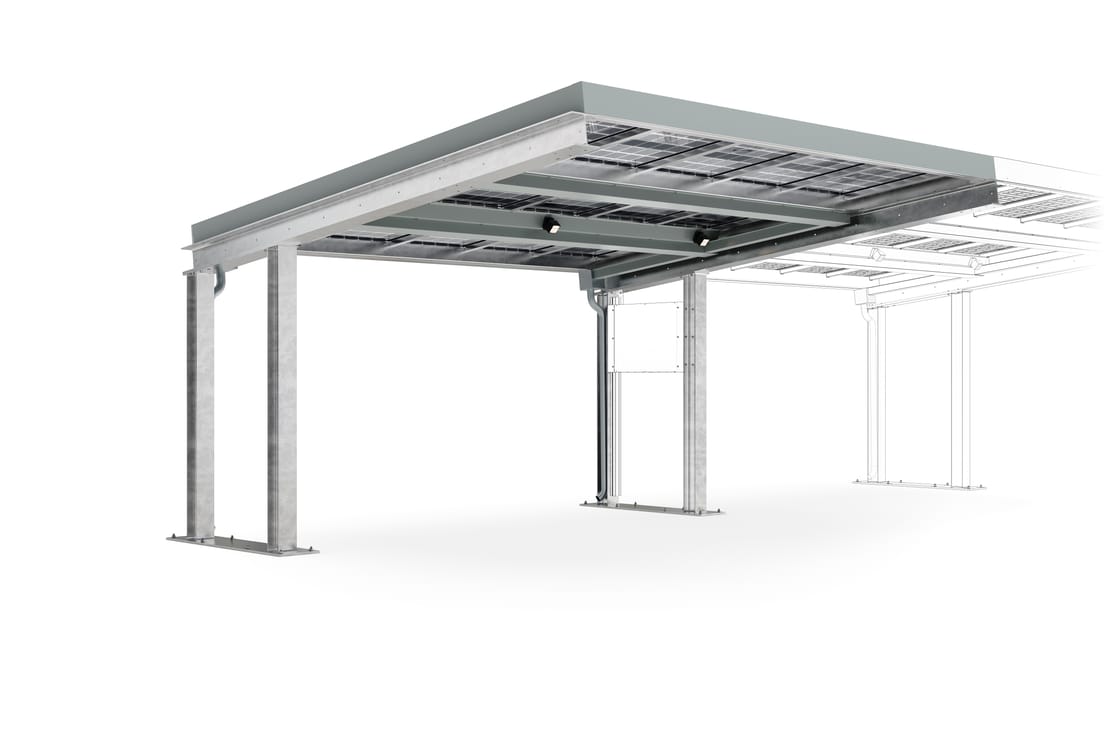

The SolarCover system combines vehicle protection and environmentally friendly energy generation in a modern design. Ideal for parking spaces, vehicle fleets and employee parking lots, the system can be flexibly expanded. The basic module with two parking spaces can be extended with add-on units for larger systems. The frame consists of galvanized steel beams, the roof of 15 robust glass-glass photovoltaic modules. With a transparency of 28%, it offers both light conditions and UV protection. The rated output of 210 Wp per module also makes it economical for large parking lots. An intelligent drainage system ensures unobtrusive drainage of rainwater. The SolarCover meets high safety standards and is quickly installed so that parking spaces can be used again quickly. Start a sustainable future full of energy with our SolarCover!

Details

Artikelnummer: 102200042

Model variant: SolarCover Y basic unit
Size: 5490 × 3460 × 5070 (width x height x depth)

Dimensions

Base area	27,83 m²

Technical details

Roof style	Pent roof
Drainage type	Over gutter into downpipes
Construction type	Screwed / assembly kit
Mounting type	Floor mounting
For paving over	Yes

Materials

Roof type	Solar module glass/glass
Colour	Antique silver
Base material	Steel
Surface finish	Galvanized

Use

Parking spaces	2

Statics

Snow load (sk) in kn/qm	2.5

Mehr

Level of transparency	28%
Overhead approval	DIN18008
Roof pitch	7°
Proof of stability	Yes
Paving over (200 mm)	Yes
Lighting	Yes
Motion detector	Yes
Rated power per module	210Wp
Rated power per unit (15 modules)	3150Wp
Inverter DC input power (W)	7200W
Weight	3290 kg
Dimensions	5070 × 5490 × 3460 mm
