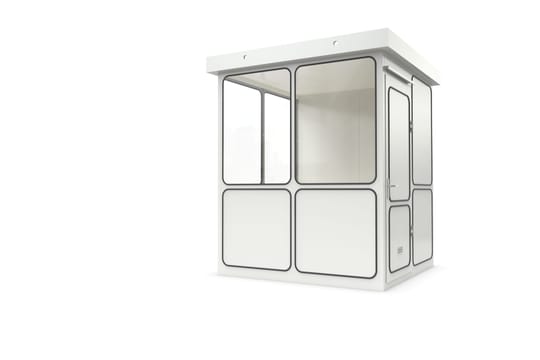

Ra 8

Name: Ra 8
SKU: 101100221

Even the hard daily work routine cannot harm this room system. Its special design provides special sound insulation and a comfortable feeling of space.

Artikelnummer: 101100221

Size: 2200 × 2750 × 2200 (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

Thanks to its special design, the “R” model series is a room system for demanding working environments. Whether as an office, gatehouse or warehouse, this model adapts to your needs. Glass and wall elements set in rubber profile give the room not only its classic appearance, but also high sound insulation values. With proper insulation and the use of insulating glazing, this variant is designed for outdoor use. You also have a wide range of design options with the accessories – whether electrical connections, communication lines, air conditioning or lighting. With the standardized modular construction method, large areas can be extended up to three stories. You are not limited to container dimensions with this building.

Details

Artikelnummer: 101100221

Model variant: Ra 8
Size: 2200 × 2750 × 2200 (width x height x depth)

Dimensions

Clear width	2147 mm
Size	S
Base area	4.84 m²
Clear height	2500 mm
Clear depth	2147 mm

Technical details

Number of wall elements	8
Drainage type	Via gutter

Materials

Insulation	Mineral fibre slabs
Insulation thickness	40 mm
Colour	RAL 9002 – Grey white
Glass type	Insulated glass
Glass strength	24 mm
Glass mounting	Rubber clamping profile
Outside wall cladding	Rubber lined sheet metal
Wall cladding	Composite wood
Wall cladding thickness	16 mm
