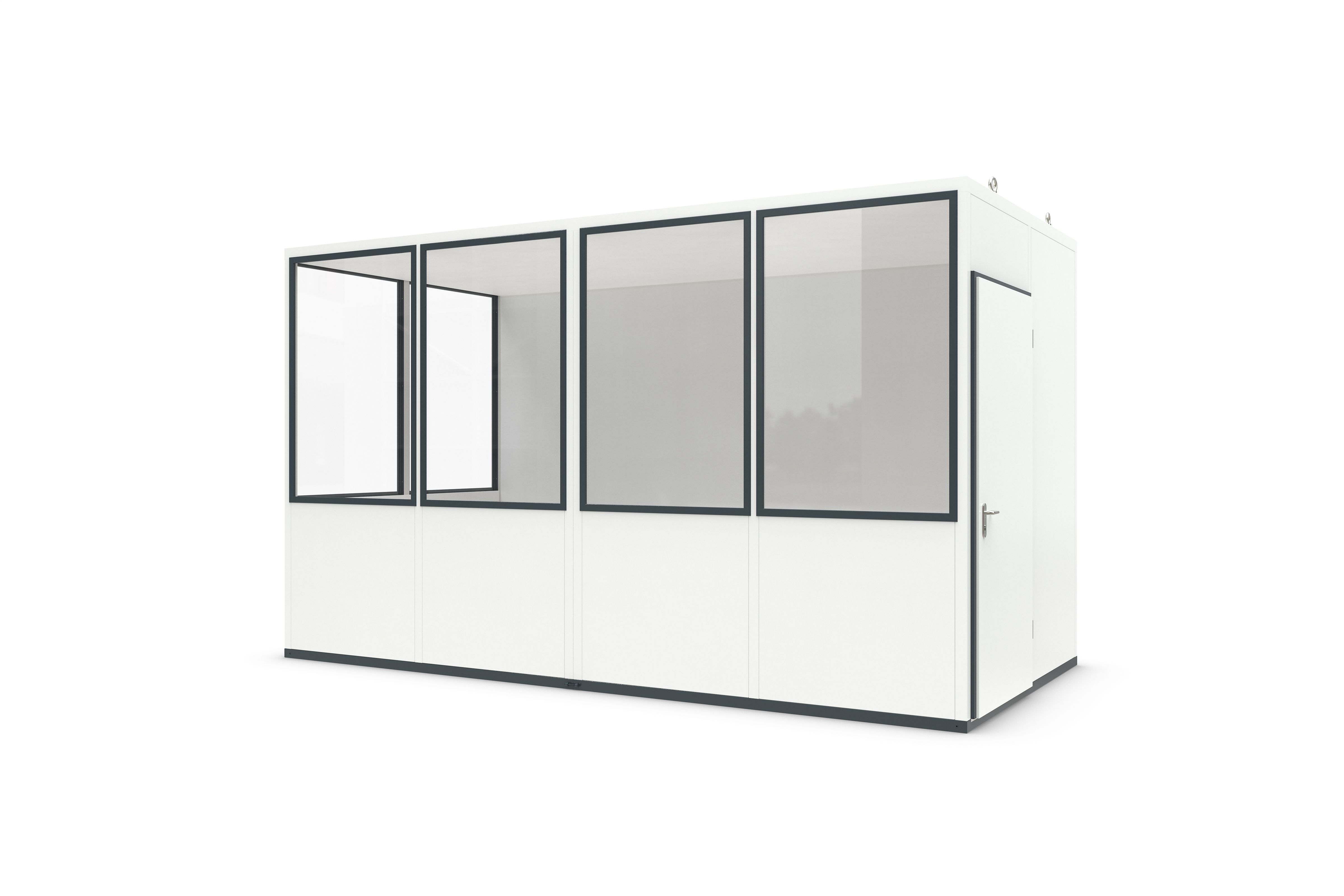

MultiRoom Indoor Basic 10

Name: MultiRoom Indoor Basic 10
SKU: 101700031

The ideal entry-level model for additional lounges or hall offices. Standardized, flexible, quickly available and easy to assemble.

Artikelnummer: 101700031

Size: 4560 × 2680 × 2280 (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

This room system is the ideal entry-level model for companies that want to create additional recreation rooms or hall offices indoors. Thanks to the standardized design and the reduced design options, this version is cost-effective and can be delivered quickly when time is of the essence. The robust steel construction can also be moved at a later date thanks to crane eyes, so you don’t have to commit to permanent structural changes. There is a choice of two electrical packages for lighting, electricity and air conditioning.

Details

Artikelnummer: 101700031

Model variant: MultiRoom Indoor Basic 10
Size: 4560 × 2680 × 2280 (width x height x depth)

Dimensions

Clear width	4440 mm
Passage width	1050 mm
Size	L
Base area	10.40 m²
Clear height	2540 mm
Clear depth	2160 mm

Technical details

Number of wall elements	12

Materials

Insulation	Mineral fibre slabs
Insulation thickness	40 mm
Colour	RAL 9002 – Grey white
Glass type	Toughened safety glass
Glass strength	5 mm
Glass mounting	Aluminium frame
Outside wall cladding	Sheet metal
Wall cladding	Composite wood
Wall cladding thickness	16 mm
