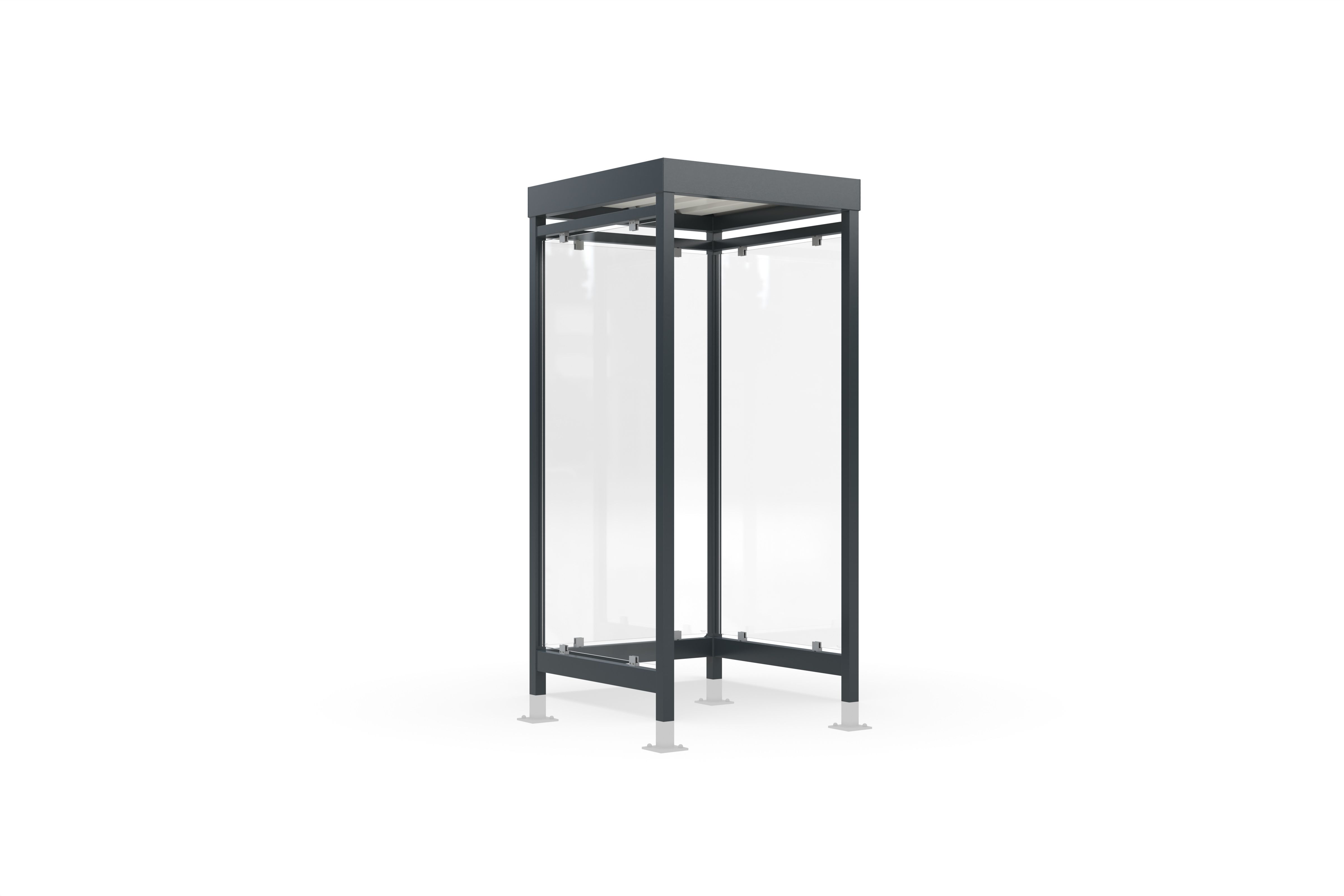

Köln K1 a/a UP

Hot-dip galvanized flat roof steel construction with weatherproof trapezoidal sheet metal roof in variable sizes, selectable side walls and pre-tested type statics.

Artikelnummer: 102000175

Size: 1150 × 2440 × 1150 (width x height x depth)

Description

Versatility and flexibility are already built into our timelessly elegant “Köln” Shelter system. “Köln” is available in several sizes, configurations and colors, with variable roof lengths and depths and optimized for your application. For the rear and side walls, printable toughened safety glass (ESG) fixed with glass holders or other materials are available. Plants with protected interior and access doors can also be realized. Drainage is provided by water spouts on the ground side. The “Köln” is suitable for very high wind loads and snow loads and, thanks to certified type testing, can be erected anywhere without additional structural testing. An individual painting in min. C4 medium quality is possible. Ready assembled or as a kit.

Details

Artikelnummer: 102000175

Model variant: Köln K1 a/a UP
Size: 1150 × 2440 × 1150 (width x height x depth)

Dimensions
Clear width

1030 mm

Size

XS

Base area

1.10 m²

Clear height

2290 mm

Pipe diameter

60 mm

Clear depth

1090 mm

Technical details
Extension unit

No

Roof style

Flat roof

Drainage type

Via spouts

Construction type

Welded / ready assembled

Mounting type

Floor mounting

Rear wall

Yes

Rear wall configuration

1-field

Configuration

One-sided

Side walls

Left and right

For paving over

Yes

Wall configuration

a/a

Materials
Roof type

Troughed sheet

Colour

RAL 7016 – Anthracite grey

Glass mounting

Aluminium glass holders

Base material

Steel

Surface finish

Galvanised and color coated

Rear wall type

Toughened safety glass

Side wall type

Toughened safety glass

Use
Capacity - Number of refuse bins (120l, side by side)

2

Capacity - Number of persons (1,8 m distance)

1

People shelter

Yes

Statik
Snow load (sk) in kn/qm

1.9

Type static

Yes

Wind load zone

Zone 1 to 3

Mehr
EAN/GTIN

4250366531755

Dimensions

1150 × 1150 × 2440 mm
