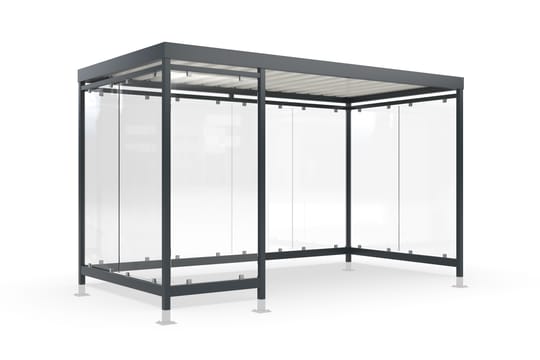

Köln K4 c/b UP

Name: Köln K4 c/b UP
SKU: 102000693

Hot-dip galvanised flat roof steel construction with weatherproof troughed sheet roof, selectable side walls and suitable for very high snow loads.

Artikelnummer: 102000693

Size: 4195 × 2440 × 2165 (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

Versatility and flexibility are already built into our timelessly elegant “Köln” shelter system. The “Köln” is available in several sizes and colours, with variable roof lengths and widths and optimised for your application. Printable toughened safety glass fastened with glass holders or other materials are available for the rear and side panels. Even systems with protected interior and access doors can be realised. The drainage takes place via ground-level gargoyles. The “Köln” is suitable for very high wind loads and in this “Alpine” variant for even higher snow loads. Custom coating in at least C4 medium quality is also offered. Ready assembled or as a kit.

Details

Artikelnummer: 102000693

Model variant: Köln K4 c/b UP
Size: 4195 × 2440 × 2165 (width x height x depth)

Dimensions

Clear width	4075 mm
Size	L
Base area	8.50 m²
Clear height	2290 mm
Pipe diameter	60 mm
Clear depth	2105 mm

Technical details

Extension unit	No
Roof style	Flat roof
Drainage type	Via spouts
Construction type	Welded / ready assembled
Mounting type	Floor mounting
Rear wall	Yes
Rear wall configuration	4-field
Configuration	One-sided
Side walls	Left and right
For paving over	Yes
Wall configuration	c/b

Materials

Roof type	Troughed sheet
Colour	RAL 7016 – Anthracite grey
Glass mounting	Aluminium glass holders
Base material	Steel
Surface finish	Galvanised and color coated
Rear wall type	Toughened safety glass
Side wall type	Toughened safety glass

Use

Capacity - Europallets (EPAL)	6
Capacity - Number of waste containers (1100l, side by side)	2
Capacity - Number of refuse bins (120l, side by side)	8
Capacity - Number of persons (1,8 m distance)	5
People shelter	Yes
