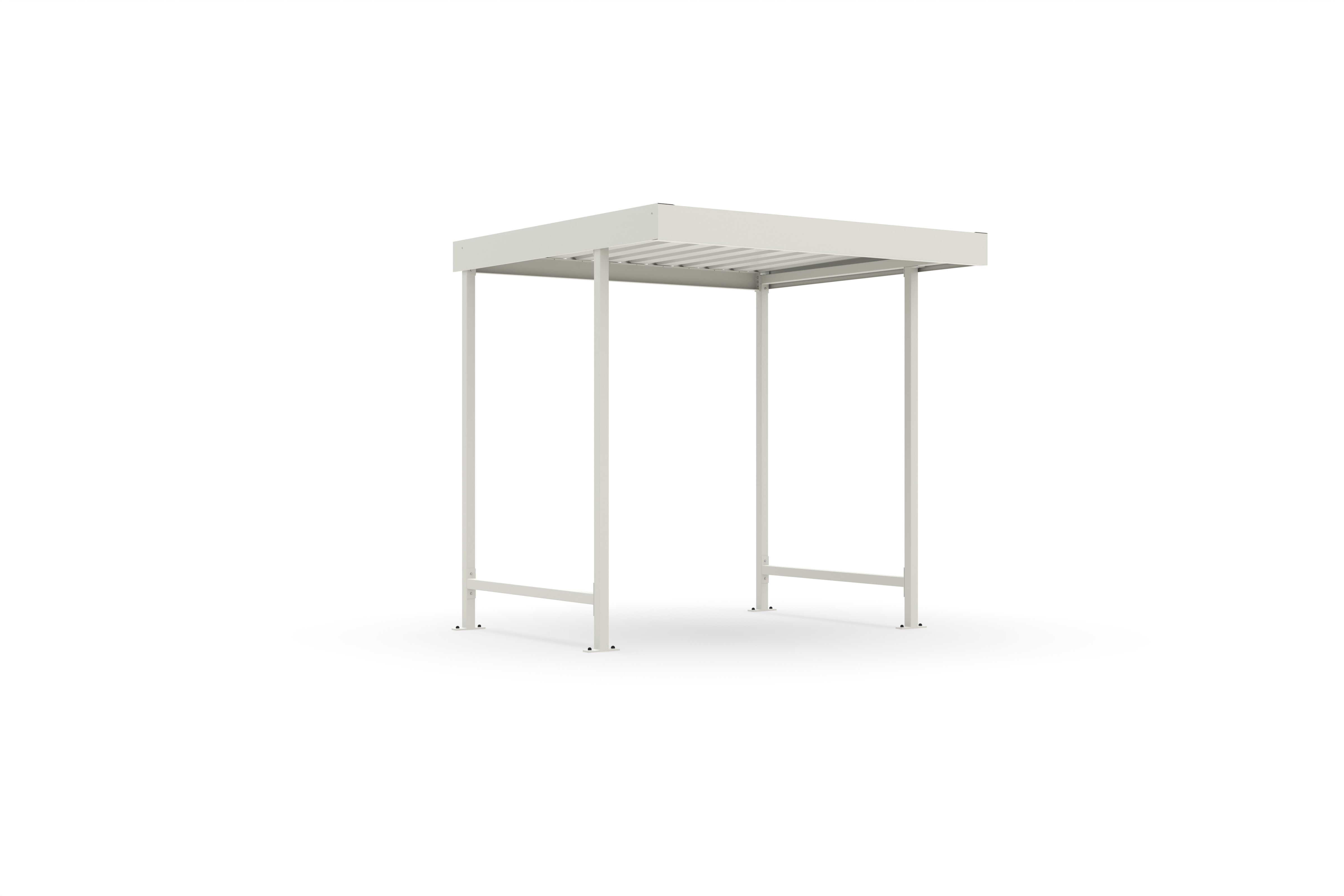

Leipzig L10 RAL 9002

Name: Leipzig L10 RAL 9002
SKU: 102001866

Standardised flat roof base system with trapezoidal sheet metal walls. Kit for self-installation.

Artikelnummer: 102001866

Size: 2250 × 2360 × 2200 (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

The Leipzig shelter system is simple, robust and extremely versatile. Through the combination of basic and extension units as well as through the use of different cladding variants, shelters for weatherproof storage of material or for parking vehicles, open, semi-open or closed shelters are created. The practical profiled sheet roofing has a three-sided, screwed-on cladding and directs rainwater to the rear. Rain gutters and downpipes are available on request. Available in roof widths of 1600, 2200 or 4400 mm. Kit for self-installation with easy-to-understand installation instructions.

Details

Artikelnummer: 102001866

Model variant: Leipzig L10 RAL 9002
Size: 2250 × 2360 × 2200 (width x height x depth)

Dimensions

Clear width	2190 mm
Roof panel height	150 mm
Size	S
Base area	4.40 m²
Clear height	2175 mm
Pipe diameter	60 mm
Clear depth	2040 mm

Technical details

Extension unit	No
Roof style	Flat roof
Construction type	Screwed / assembly kit
Mounting type	Floor mounting
Rear wall	No
Configuration	One-sided
Side walls	none
For paving over	No

Materials

Roof type	Troughed sheet
Colour	RAL 9002 – Grey white
Base material	Steel
Surface finish	Galvanised and color coated

Use

Capacity - Europallets (EPAL)	2
Capacity - Number of waste containers (1100l, side by side)	1
Capacity - Number of refuse bins (120l, side by side)	4
People shelter	No
