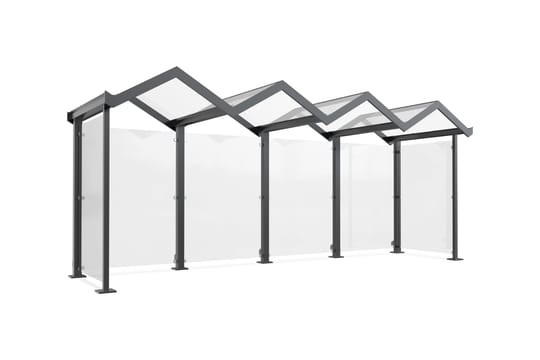

Zürich Z4

Corrosion-protected, custom-produced steel construction with longitudinal/transverse gable roof made of laminated safety glass and variable side elements.

Artikelnummer: 102001928

Size: 6000 × 2765 × 2000 (width x height x depth)

Description

A distinctive feature of the “Zurich” model series is the classically shaped, transparent gable roof – a form that has been tried and tested for centuries and which evenly dissipates snow and rain. You can find the gable roof on the “Zurich” in longitudinal or transverse direction, depending on choice and suitability. The corrosion-protected steel girders can be arranged variably, so that cantilever designs are also possible, which are ideally suitable as shelters for bicycle parking facilities. The versatile system also proves itself as weather protection for shopping carts or carports. Design options also exist for the sidewalls, which by default are of tempered safety glass, as well as in the colour scheme. All types of attachment are possible on request. Extensive range of accessories.

Details

Artikelnummer: 102001928

Model variant: Zürich Z4
Size: 6000 × 2765 × 2000 (width x height x depth)

Dimensions
Clear width

5900 mm

Roof panel height

140 mm

Passage width

5900 mm

Base area

10.70 m²

Clear height

2200 mm

Pipe diameter

100 mm

Clear depth

1830 mm

Technical details
Extension unit

No

Number of wall elements

6

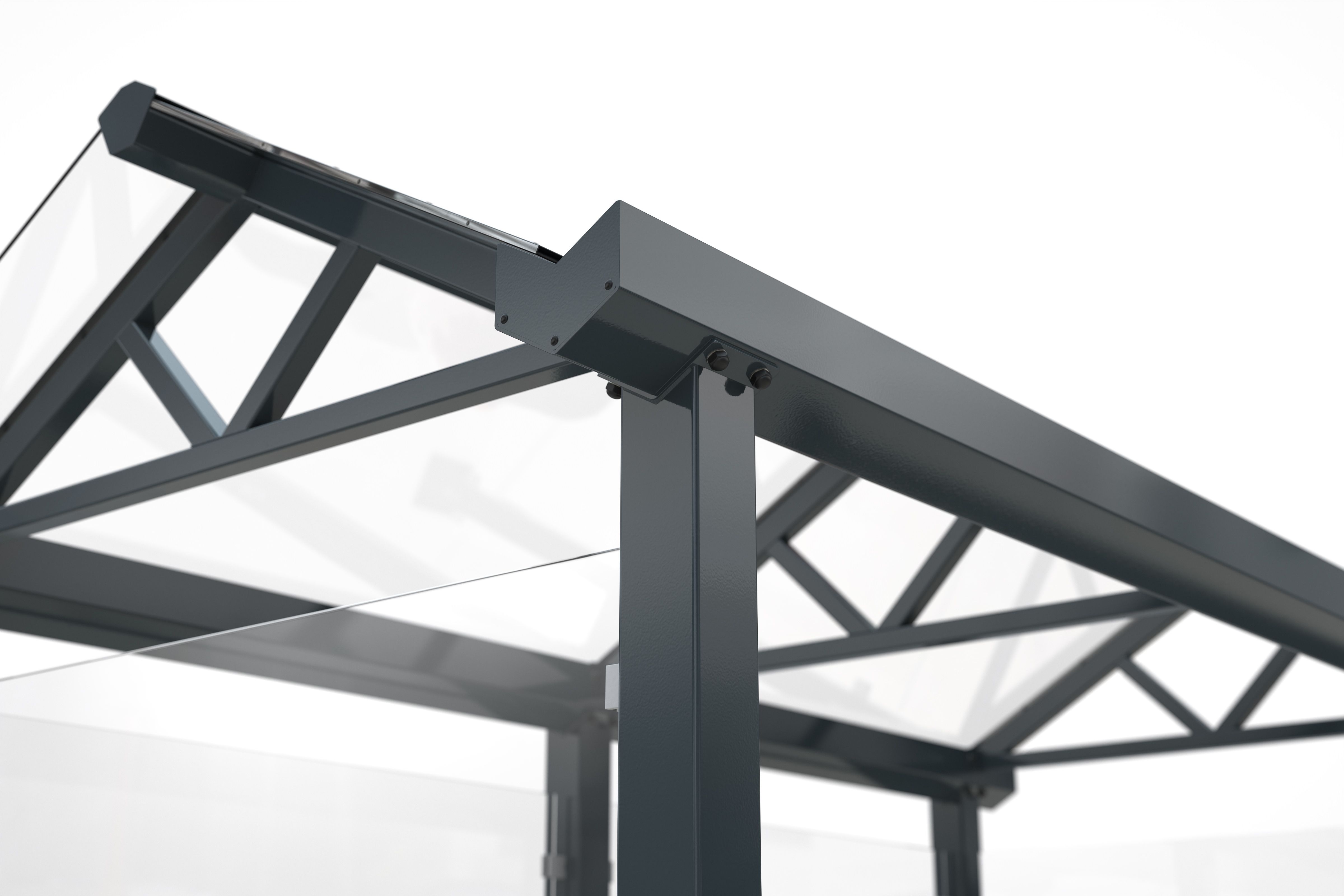

Roof style

Gabled roof

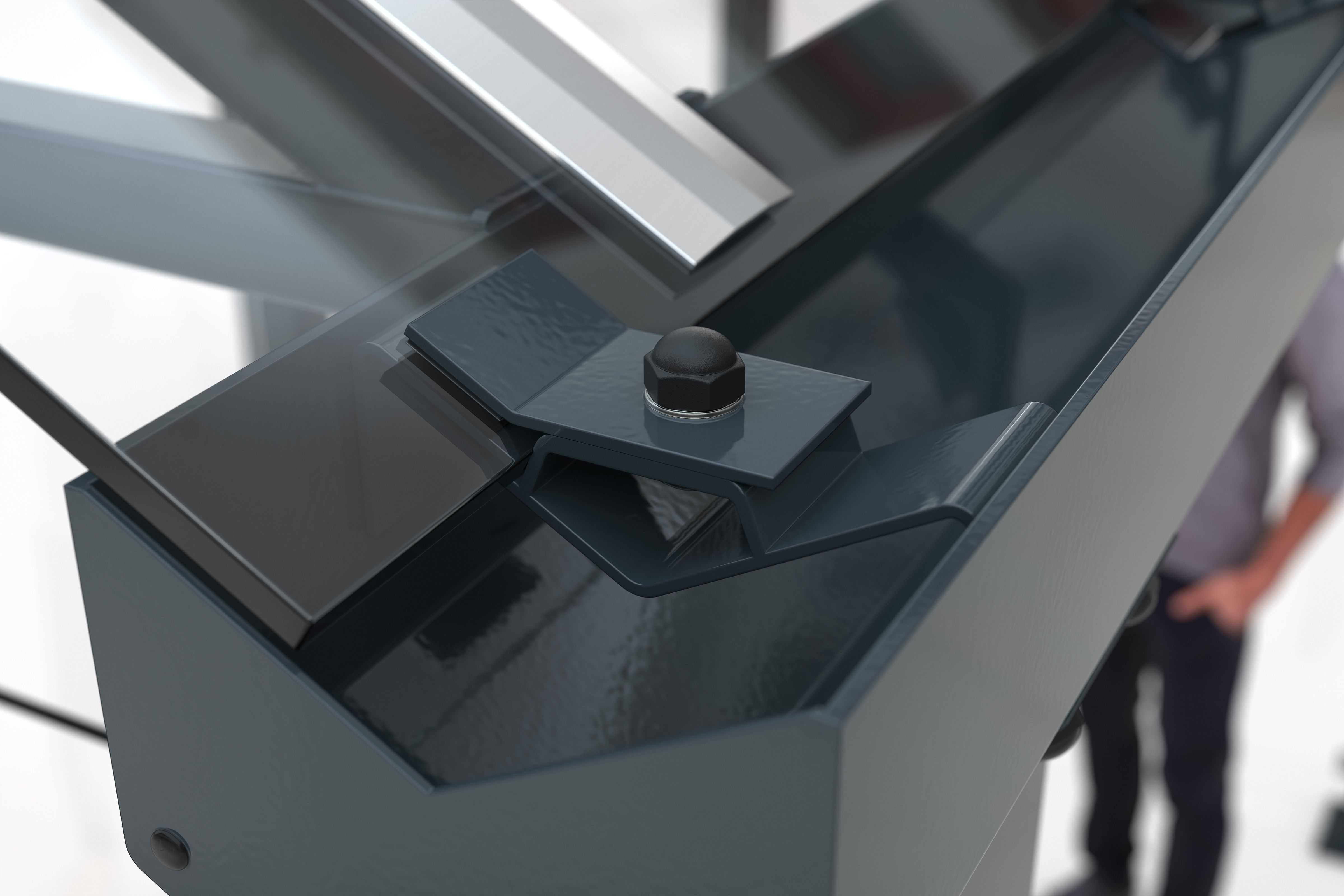

Drainage type

Via supports

Construction type

Screwed / assembly kit

Mounting type

Floor mounting

Rear wall

Yes

Rear wall configuration

4-field

Configuration

One-sided

Side walls

Left and right

For paving over

No

Materials
Roof type

Laminated safety glass

Colour

RAL 7016 – Anthracite grey

Glass strength

8 mm

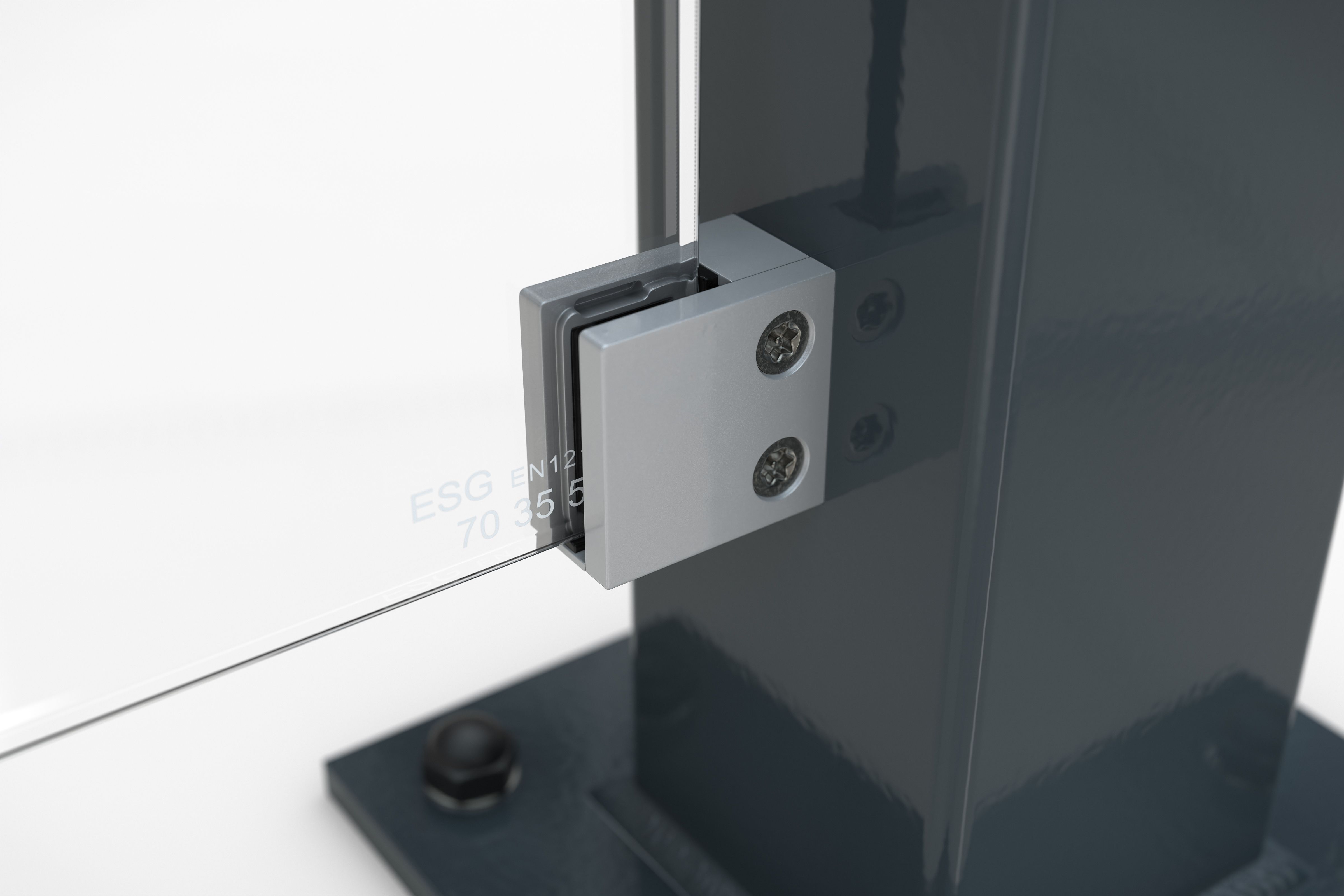

Glass mounting

Aluminium glass holders

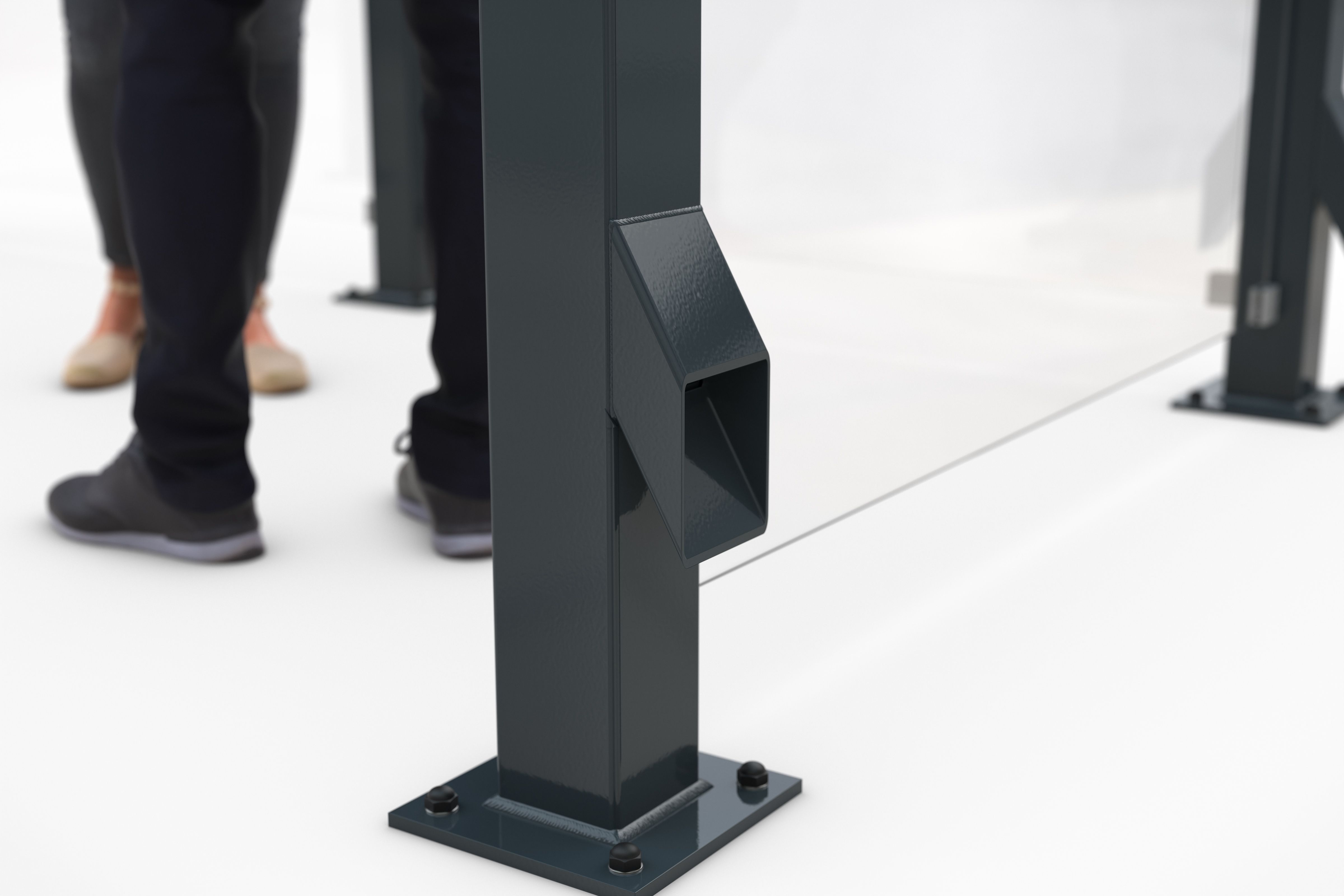

Base material

Steel

Surface finish

Galvanised and color coated

Rear wall type

Toughened safety glass

Side wall type

Toughened safety glass

Use
Capacity - Europallets (EPAL)

8

Capacity - Number of waste containers (1100l, side by side)

4

Capacity - Number of refuse bins (120l, side by side)

11

Capacity - Number of persons (1,8 m distance)

7

People shelter

Yes

Statik
Snow load (sk) in kn/qm

0.93

Type static

No

Wind load zone

Zone 1 to 2

Mehr
EAN/GTIN

4250366536057

Weight

1050 kg

Dimensions

2000 × 6000 × 2765 mm
