Passau P13 B

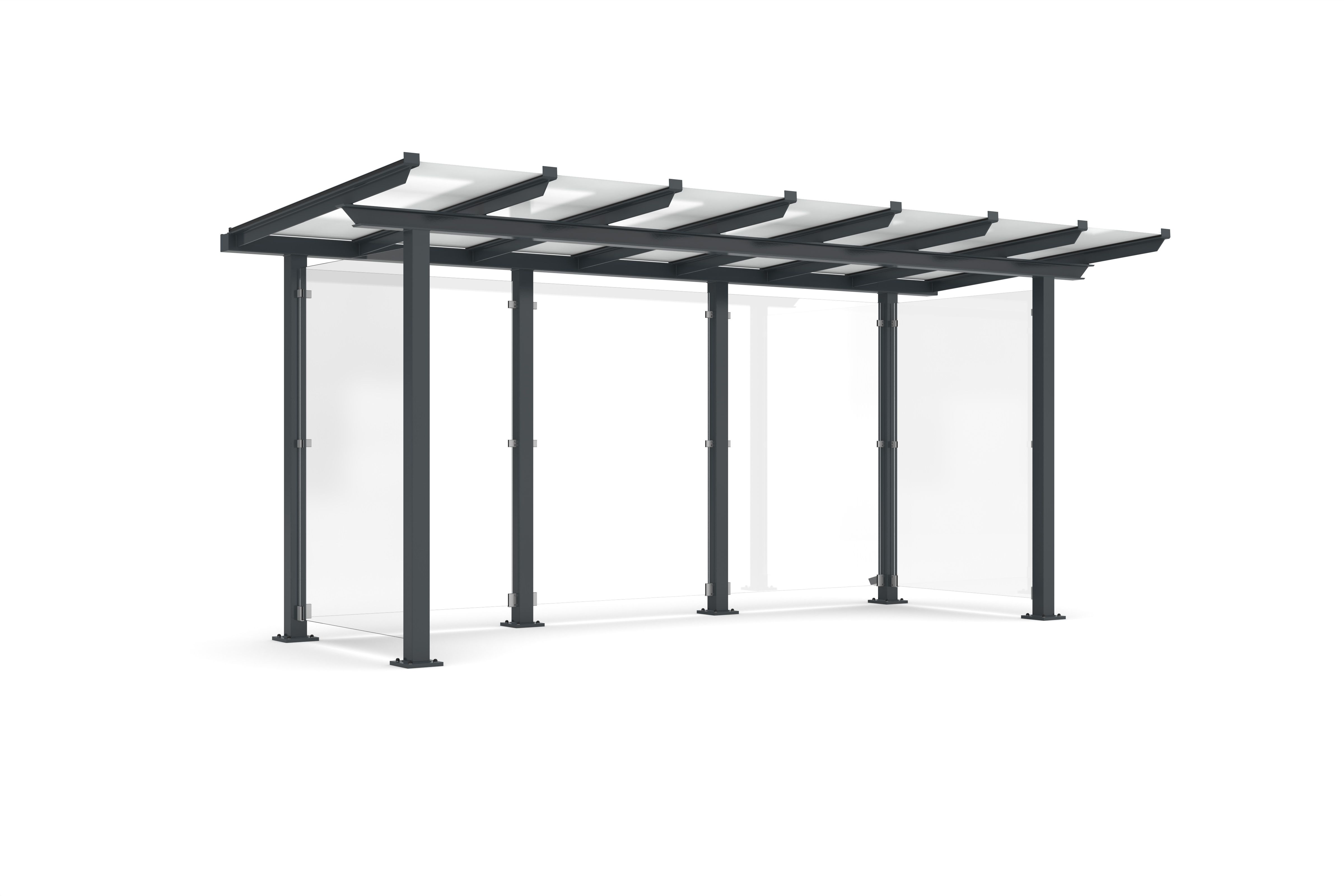

Shelter system with elegant glazed pent roof construction. Rear and side walls of toughened safety glass. Type statics tested in advance.

Artikelnummer: 102100358

Size: 4600 × 2445 × 2250 (width x height x depth)

Description

The sleek and modern design of this shelter system makes it an attractive focal point in the cityscape. The large glass surfaces and elegant pent roof speak a contemporary language and are architecturally inspired by modern buildings. The Passau is perfectly suited as a person or bicycle shelter and due to the type testing it can be placed anywhere without additional static verification. The rear and side walls are made of toughened safety glass, while the roof is made of laminated safety glass pursuant DIN 18008. Drainage is via ground level water spouts. The shelter is bolted and dowelled to the ground with base plates. Designed for durability and a long service life, the supporting structure is hot-dip galvanised and coated in environmentally friendly colours. Available in numerous RAL colours.

Details

Artikelnummer: 102100358

Model variant: Passau P13 B
Size: 4600 × 2445 × 2250 (width x height x depth)

Dimensions
Roof width

5350 mm

Clear width

4400 mm

Roof panel height

100 mm

Passage width

4400 mm

Base area

6.60 m²

Clear height

2200 mm

Pipe diameter

100 mm

Clear depth

1500 mm

Technical details
Extension unit

No

Number of wall elements

5

Roof style

Pent roof

Drainage type

Via spouts

Construction type

Welded / ready assembled

Mounting type

Floor mounting

Rear wall

Yes

Rear wall configuration

3-field

Configuration

One-sided

Side walls

Left and right

For paving over

No

Materials
Roof type

Laminated safety glass

Colour

RAL 7016 – Anthracite grey

Glass strength

10 mm

Glass mounting

Aluminium glass holders

Base material

Steel

Surface finish

Galvanised and color coated

Rear wall type

Toughened safety glass

Side wall type

Toughened safety glass

Use
Capacity - Europallets (EPAL)

5

Capacity - Number of waste containers (1100l, side by side)

3

Capacity - Number of refuse bins (120l, side by side)

8

Capacity - Number of persons (1,8 m distance)

4

People shelter

Yes

Statics
Snow load (sk) in kn/qm

1.9

Type static

Yes

Wind load zone

Zone 1 to 3

Mehr
EAN/GTIN

4250366537122
