Athen A401

Robust corrosion-protected colour-coated hot-dip galvanised steel frame construction. Clear laminated glass roofing. Integrated drainage.

Artikelnummer: 102100388

Size: 3300 × 3050 × 3300 (width x height x depth)

Description

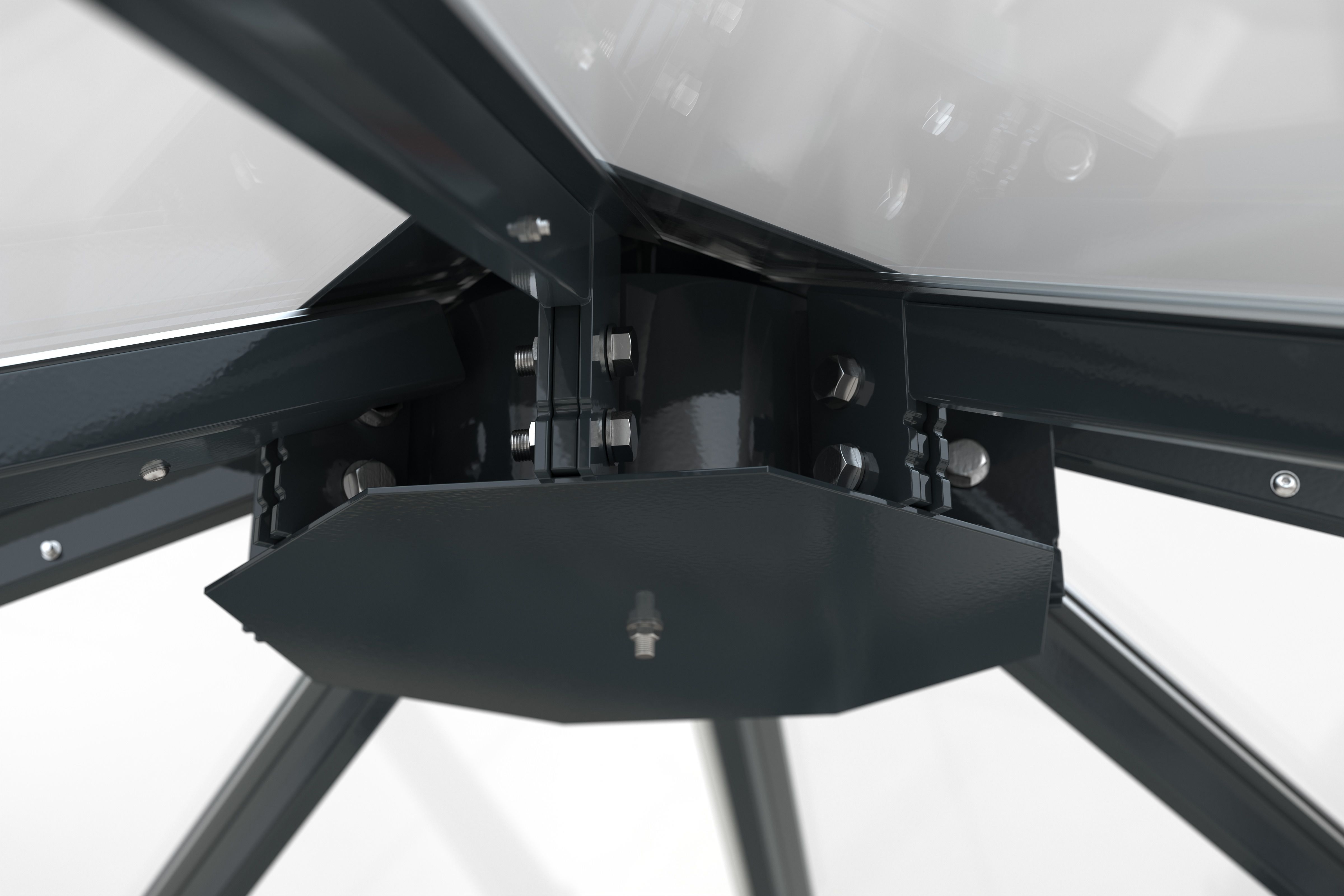

Your employees, customers or guests will enjoy coming together under this robust and beautifully designed pavilion-style shelter. The “Athen” steel frame construction with glass roofing in laminated safety glass guarantees an exceptionally long service life in any weather. For maximum corrosion protection, all steel parts are hot-dip galvanised, primed and colour-coated or painted with environmentally friendly two-component paint. Drainage is above ground through the supports. Printable side walls made of toughened safety glass, benches, bistro tables and free-standing ashtrays are optionally available. The assembly kit for self-installation is supplied with easy-to-follow assembly instructions. Optional custom coating in RAL colours of choice (except pearl and signal colours).

Details

Artikelnummer: 102100388

Model variant: Athen A401
Size: 3300 × 3050 × 3300 (width x height x depth)

Dimensions
Size

L

Base area

9.90 m²

Clear height

2200 mm

Technical details
Extension unit

No

Roof style

Tent roof

Drainage type

Via spouts

Construction type

Screwed / assembly kit

Mounting type

Floor mounting

Rear wall

No

Configuration

One-sided

Side walls

none

For paving over

Yes

Wall configuration

Square

Materials
Roof type

Laminated safety glass

Colour

RAL 7016 – Anthracite grey

Base material

Steel

Surface finish

Galvanised and color coated

Use
Capacity - Number of persons (1,8 m distance)

6

People shelter

Yes

Statik
Snow load (sk) in kn/qm

1.9

Type static

Yes

Mehr
EAN/GTIN

4250366536729

Weight

1315 kg

Dimensions

3300 × 3300 × 3050 mm
