3990

Name: 3990
SKU: 105700097

Wall hanging system for space-optimized storage of all types of bicycles with all tire widths. Sheathing that is gentle on rims. Simple dowel mounting.

Artikelnummer: 105700097

Size: Dimensions not set for this product. (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

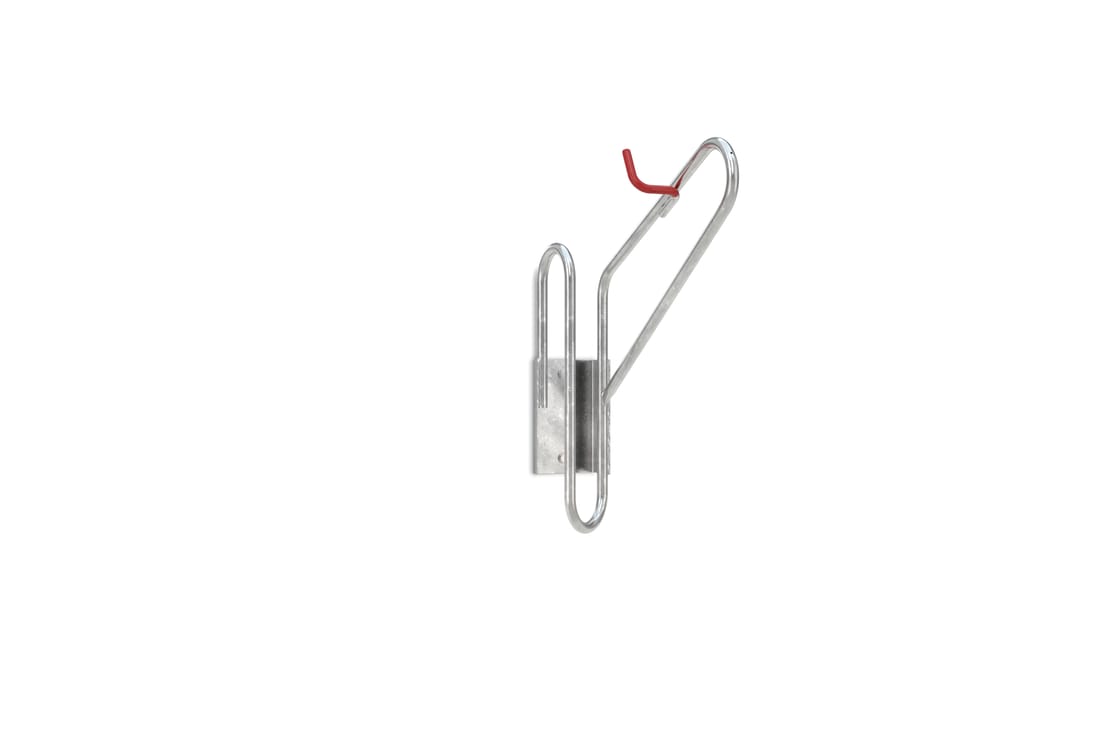

Suspended parker 3900 consists of a very stable steel construction made of round tube with a massive large-area mounting plate. Two differently shaped leaning brackets fix the front wheel, which is hooked into a plastic-coated hook, protecting the delicate rims from damage. Usable for all types of bicycles with all tire widths. To make even better use of existing space, three versions with different adjustment angles are available. The recommended mounting distance when using several parkers in a row is 650 mm. The suspended parker 3900 is also available on request galvanized and color coated RAL of your choice.

Details

Artikelnummer: 105700097

Model variant: 3990
Size: Dimensions not set for this product. (width x height x depth)

Dimensions

Pipe diameter	18 mm

Technical details

Construction type	Screwed / assembly kit
Mounting type	Wall mounting
Configuration	One-sided

Materials

Colour	Silver
Base material	Steel
Surface finish	Galvanised

Use

Parking style	To hang
Parking spaces	1
Setting angle	90° straight
Product instructions	The dowels and anchors used for wall mounting must withstand a tensile load of 300 kg (3 kN). For further information, please contact your local dealer.
Tyre width	64 mm
Parking space depth	1100 mm
