4801 XXBF Low

Flexible and arbitrarily expandable bicycle parking system with stop protection, adjustment brackets, leaning brackets and steel eyelets in high and low position.

Artikelnummer: 105800171

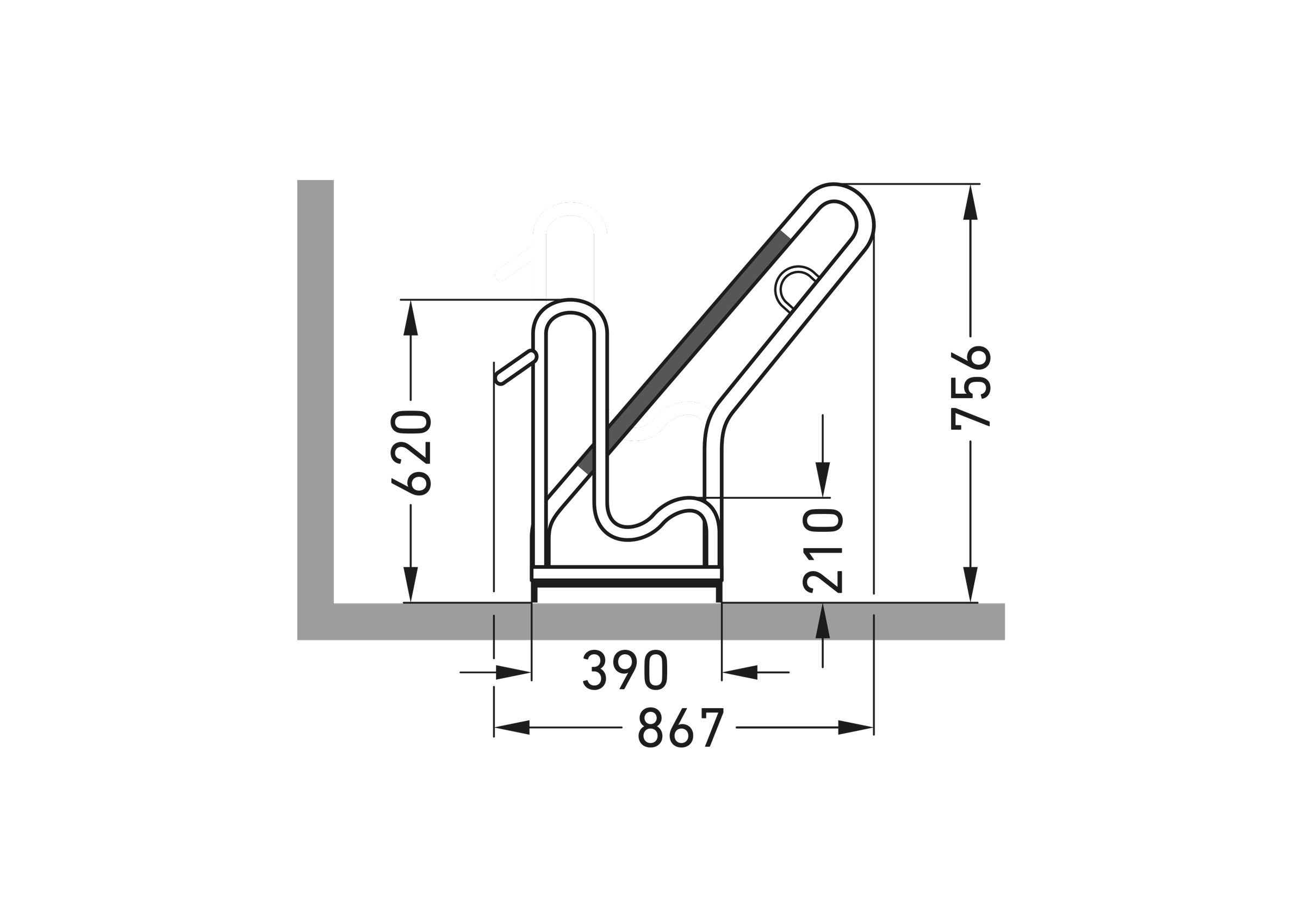

Size: 600 × 756 × 867 (width x height x depth)

Description

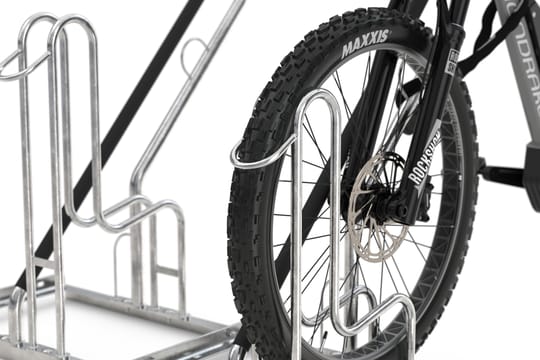

The 4801 XXBF lean-to parker offers a parking space for bicycles with tires up to 70 mm wide, which means that bicycles with extra-wide tires can also be parked safely. The safety of the bike is guaranteed: The plastic impact guard protects the bike frame from damage. The leaning bracket ensures that the bike cannot tip over. And round steel eyelets serve as attachment points for bicycle locks. The Bicycle rack is prepared to be fixed to the ground and connected to other models in the series, creating a row system with any number of parking spaces that can also be expanded at a later date. The model is available in a version for high setting and one for low setting. With a row system, the available space can be optimally utilized by alternating between high and low settings, as the bikes can stand closer together without touching each other.

Meets the requirements for theft protection
acc. DIN 79008:2016-05 point 7.2

Details

Artikelnummer: 105800171

Model variant: 4801 XXBF Low
Size: 600 × 756 × 867 (width x height x depth)

Technical details
Construction type

Screwed / assembly kit

Mounting type

On the floor

Configuration

One-sided

Materials
Colour

Silver

Base material

Steel

Surface finish

Galvanised

Use
Parking style

To park with tip safety

Parking spaces

1

Setting angle

90° straight

Tyre width

70 mm

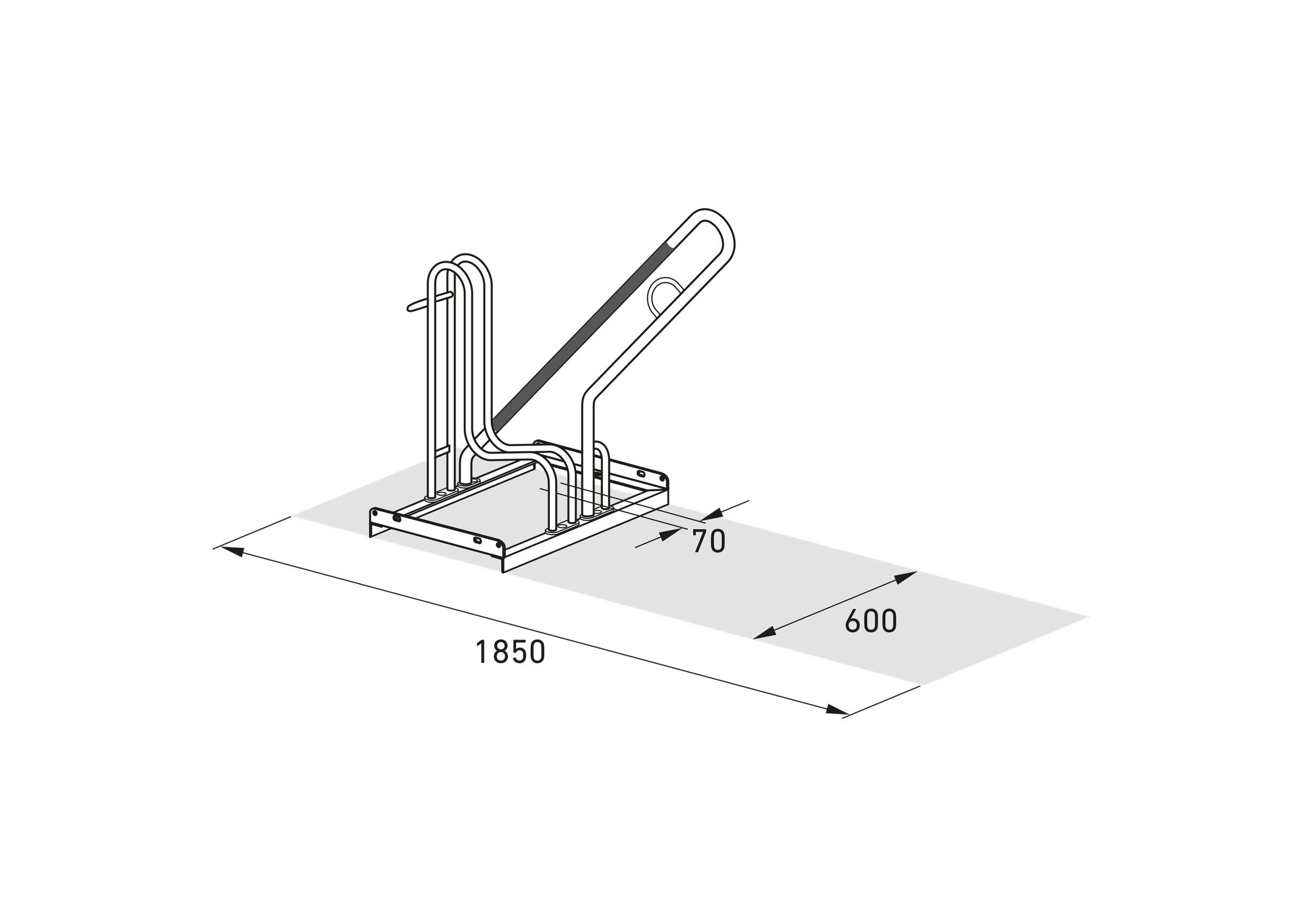

Parking space depth

1850 mm

Number of high/low parking spaces

1/0

Mehr
EAN/GTIN

4250366538167

Weight

11 kg

Dimensions

867 × 600 × 756 mm
