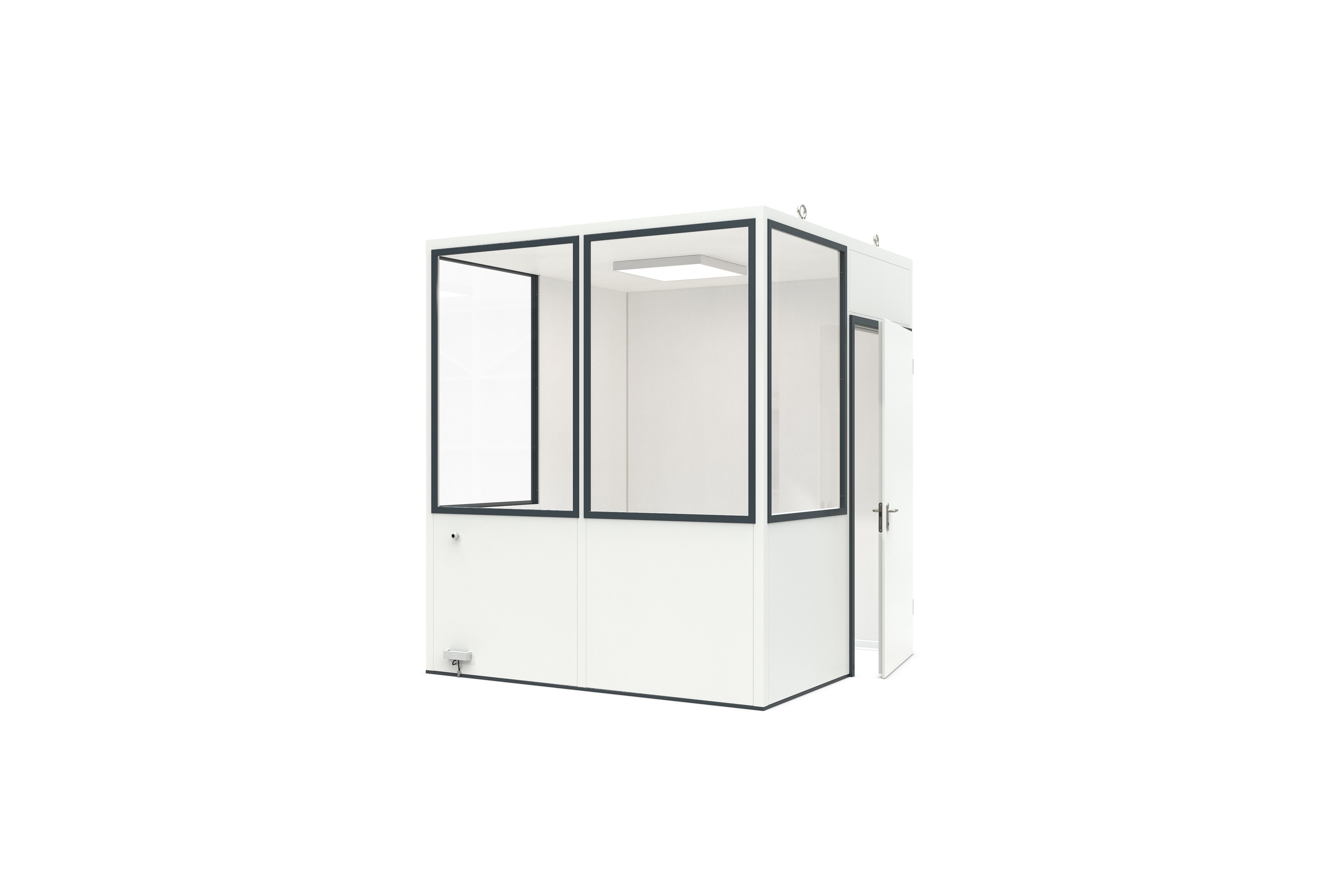

MultiRoom Indoor Barrier-free Basic 5 Mini

The ideal room system for the direct hall floor in order to continue using existing infrastructure such as underfloor heating or other systems.

Artikelnummer: 101700088

Size: 2280 × 2640 × 2280 (width × height × depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

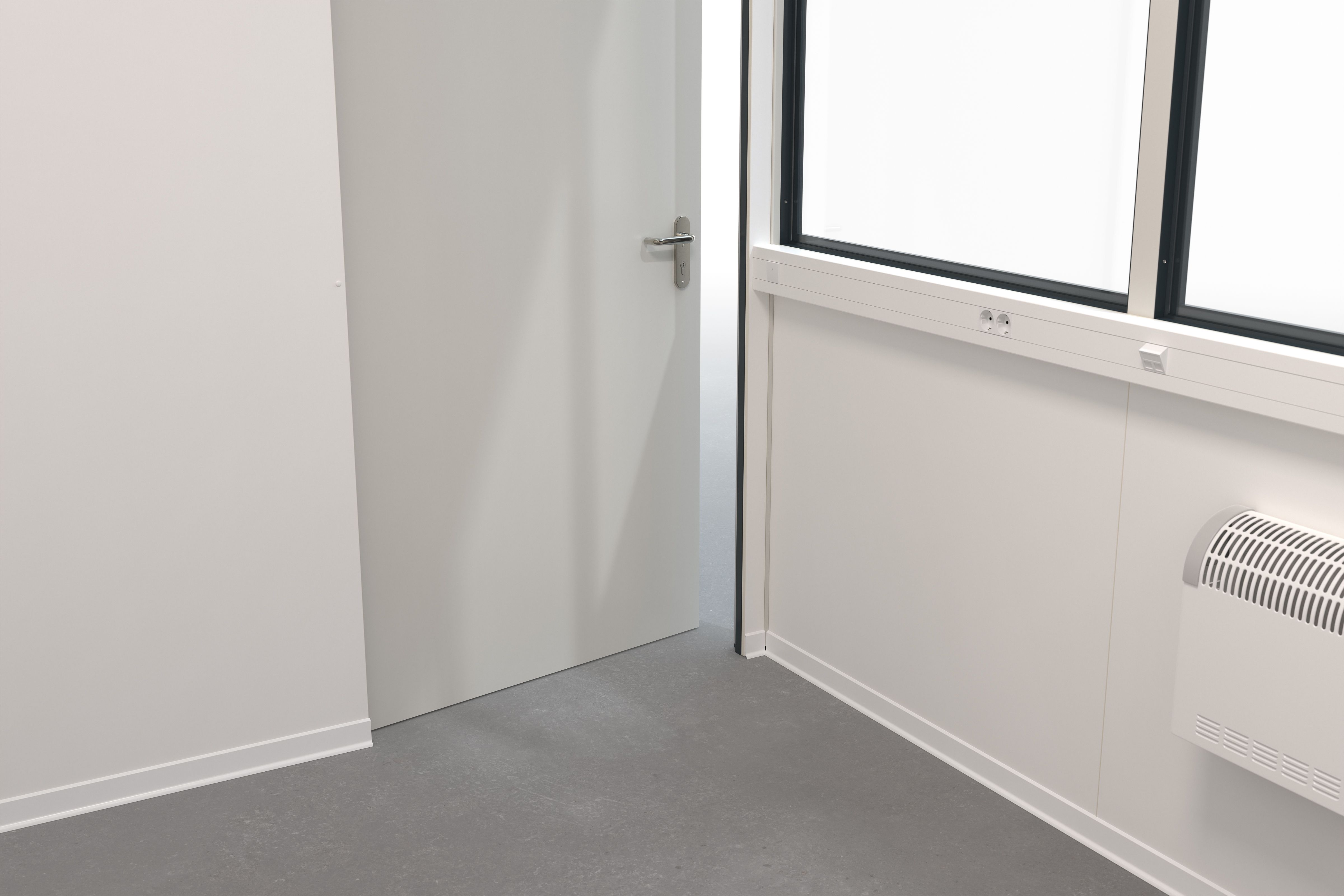

In the entrance area, the MultiRoom does not require any additional threshold, which enables an absolutely seamless transition into the interior for lift trucks or wheelchairs. Thanks to the all-round tubular frame made of solid steel tubing, the stability of the room system is still guaranteed. With the MultiRoom, you have the flexibility to adapt your room to your needs at any time.

Details

Artikelnummer: 101700088

Model variant: MultiRoom Indoor Barrier-free Basic 5 Mini
Size: 2280 × 2640 × 2280 (width x height x depth)

Dimensions

Clear width	2160 mm
Passage width	936 mm
Size	S
Base area	5.20 m²
Clear height	2540 mm
Clear depth	2160 mm

Technical details

Number of wall elements	8

Materials

Insulation	Mineral fibre slabs
Insulation thickness	40 mm
Colour	RAL 9002 – Grey white
Glass type	Toughened safety glass
Glass strength	5 mm
Glass mounting	Aluminium frame
Outside wall cladding	Sheet metal
Wall cladding	Composite wood
Wall cladding thickness	16 mm

Use

Number of windows	4
Flooring	No floor
Lifting eye	Yes
Location	Indoors
Opening type	Outwards to the right

Electronics

Number of LED ceiling lights	1
Number of double sockets	1
Electrical package	Mini
Electrical distribution	Mini distributor Gamma
Electric wall-mounted convector	1 x 1 kw
