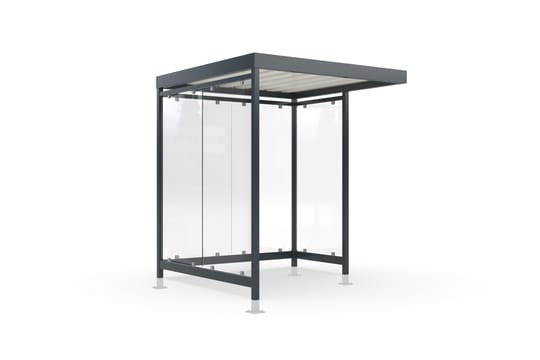

Köln K2 b/a UP

Hot-dip galvanised flat roof steel construction with weatherproof troughed sheet roof, selectable side walls and suitable for very high snow loads.

Artikelnummer: 102000730

Size: 2165 × 2440 × 2165 (width x height x depth)

Description

Versatility and flexibility are already built into our timelessly elegant “Köln” shelter system. The “Köln” is available in several sizes and colours, with variable roof lengths and widths and optimised for your application. Printable toughened safety glass fastened with glass holders or other materials are available for the rear and side panels. Even systems with protected interior and access doors can be realised. The drainage takes place via ground-level gargoyles. The “Köln” is suitable for very high wind loads and in this “Alpine” variant for even higher snow loads. Custom coating in at least C4 medium quality is also offered. Ready assembled or as a kit.

Details

Artikelnummer: 102000730

Model variant: Köln K2 b/a UP
Size: 2165 × 2440 × 2165 (width x height x depth)

Dimensions
Clear width

2045 mm

Size

S

Base area

4.30 m²

Clear height

2290 mm

Pipe diameter

60 mm

Clear depth

2105 mm

Technical details
Extension unit

No

Roof style

Flat roof

Drainage type

Via spouts

Construction type

Welded / ready assembled

Mounting type

Floor mounting

Rear wall

Yes

Rear wall configuration

2-field

Configuration

One-sided

Side walls

Left and right

For paving over

Yes

Wall configuration

b/a

Materials
Roof type

Troughed sheet

Colour

RAL 7016 – Anthracite grey

Glass mounting

Aluminium glass holders

Base material

Steel

Surface finish

Galvanised and color coated

Rear wall type

Toughened safety glass

Side wall type

Toughened safety glass

Use
Capacity - Europallets (EPAL)

2

Capacity - Number of waste containers (1100l, side by side)

1

Capacity - Number of refuse bins (120l, side by side)

4

Capacity - Number of persons (1,8 m distance)

2

People shelter

Yes

Statics
Snow load (sk) in kn/qm

1.9

Type static

Yes

Wind load zone

Zone 1 to 3

Mehr
EAN/GTIN

4250366531977
