Passau P23 BS UP

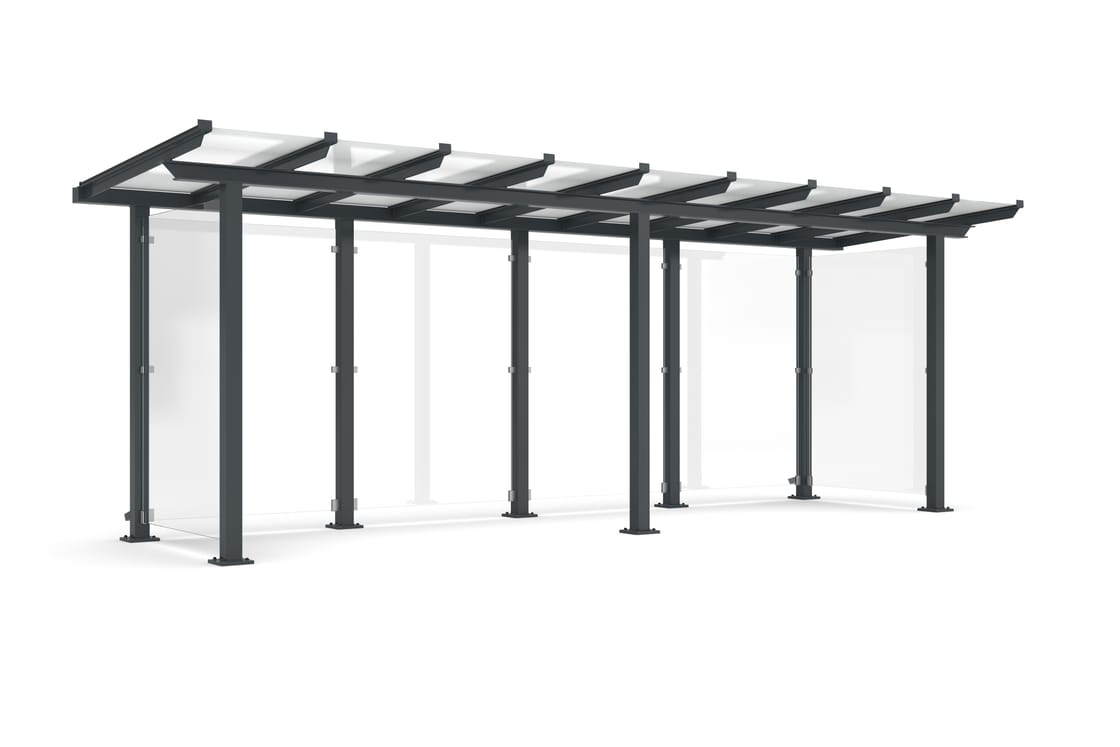

Shelter system with elegant glazed pent roof for self-assembly. Toughened safety glass walls.

Artikelnummer: 102100365

Size: 4600 × 2635 × 4420 (width x height x depth)

Description

The sleek and modern design of this shelter system makes it an attractive focal point in the cityscape. The large glass surfaces and elegant pent roof speak a contemporary language and are architecturally inspired by modern buildings. The Passau is perfectly suited as a person or bicycle shelter. The rear and side walls are made of toughened safety glass, while the roof is made of laminated safety glass pursuant DIN 18008. Drainage is via ground level water spouts. The shelter is bolted and dowelled to the ground with base plates. Designed for durability and a long service life, the supporting structure is hot-dip galvanised and coated in environmentally friendly colours. Available in numerous RAL colours. As a kit for assembly on site. A double-sided version is possible.

Details

Artikelnummer: 102100365

Model variant: Passau P23 BS UP
Size: 4600 × 2635 × 4420 (width x height x depth)

Dimensions
Roof width

5350 mm

Clear width

4400 mm

Roof panel height

100 mm

Passage width

4400 mm

Base area

13.60 m²

Clear height

2200 mm

Pipe diameter

100 mm

Technical details
Extension unit

No

Number of wall elements

4

Roof style

Pent roof

Drainage type

Via spouts

Construction type

Screwed / assembly kit

Mounting type

Floor mounting

Rear wall

No

Rear wall configuration

3-field

Configuration

Two-sided

Side walls

Left and right

For paving over

Yes

Materials
Roof type

Laminated safety glass

Colour

RAL 7016 – Anthracite grey

Glass strength

10 mm

Glass mounting

Aluminium glass holders

Base material

Steel

Surface finish

Galvanised and color coated

Side wall type

Toughened safety glass

Use
Capacity - Europallets (EPAL)

10

Capacity - Number of waste containers (1100l, side by side)

3

Capacity - Number of refuse bins (120l, side by side)

8

Capacity - Number of persons (1,8 m distance)

9

People shelter

Yes

Statik
Snow load (sk) in kn/qm

1.9

Type static

No

Wind load zone

Zone 1 to 3

Mehr
EAN/GTIN

4250366537191
