6116

Name: 6116
SKU: 105800170

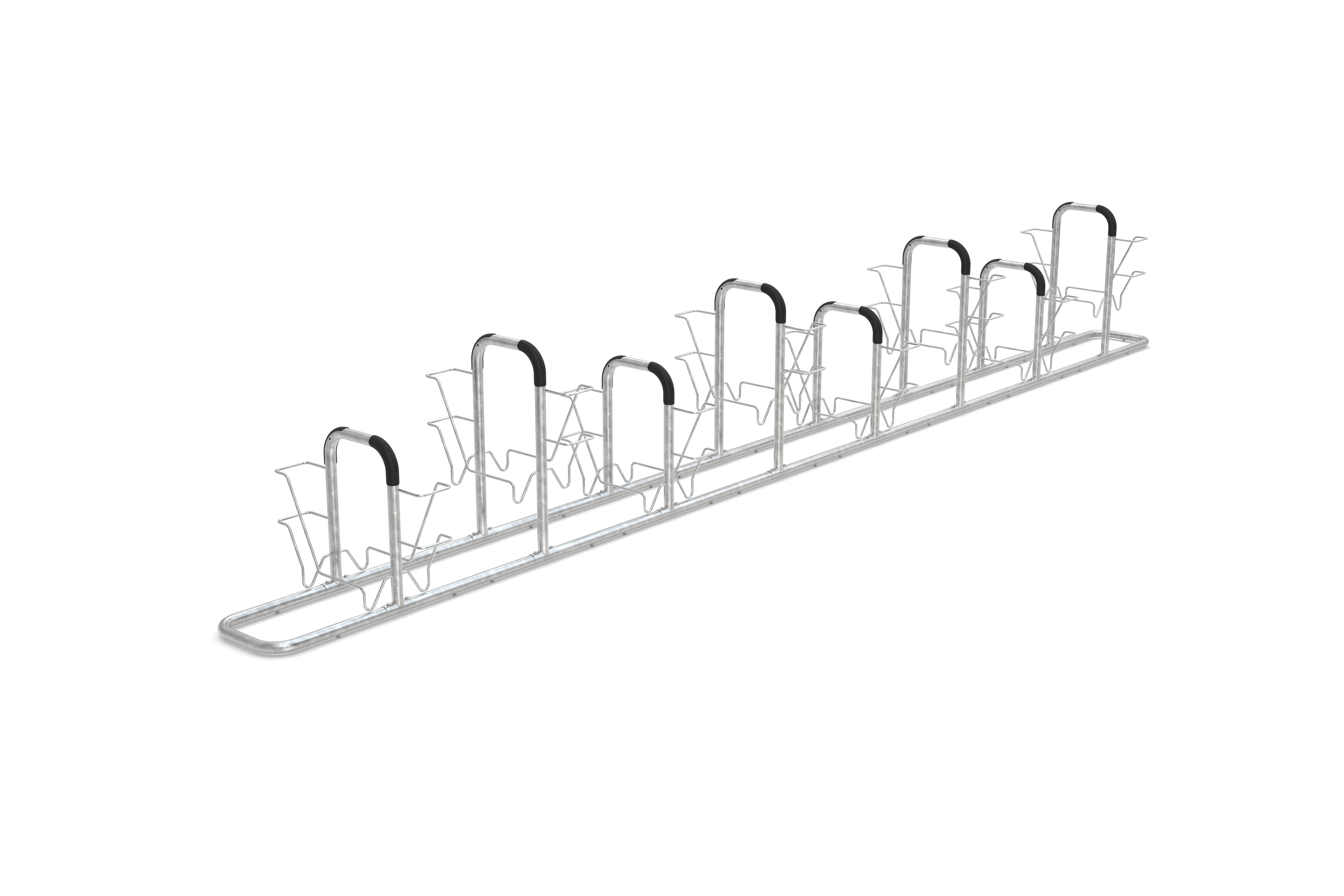

Sophisticated Bicycle parking system with front wheel holder and cleverly placed plastic elements to protect the bikes.

Artikelnummer: 105800170

Size: 7268 × 1060 × 760 (width x height x depth)

Data sheet Data sheet (white label)

GAEB XML GAEB 90 Text Word PDF

Get a Quote

Description

The 6000 lean-to bracket offers a two-piece front wheel mount for adjusting bicycles, with four contact points to the wheel for a particularly secure hold. Plastic elements on the frame protect the bike from damage during adjustment. Due to a substructure made of round tube steel, the system stands by itself and does not need to be mounted on the ground. This saves you time and money by eliminating the need for earthworks. With the help of optional concrete weights, which fit exactly on the pipes, the system can be weighted and thus fixed. Your advantage: vandalism is made impossible, while at the same time you have the possibility to move the installation as your needs change.

Details

Artikelnummer: 105800170

Model variant: 6116
Size: 7268 × 1060 × 760 (width x height x depth)

Dimensions

Pipe diameter	48 mm

Technical details

Knee-high crossbar	No
Construction type	Screwed / assembly kit
Mounting type	On the floor
Configuration	Two-sided

Materials

Colour	Silver
Base material	Steel
Surface finish	Galvanised

Use

Parking style	To park
Parking spaces	16
Setting angle	90° straight
Bike spacing	850 mm
Tyre width	55 mm
Parking space depth	3200 mm
Number of high/low parking spaces	8/8
Advertising area	No
