SolarCover 2.0

Sustainable. Innovative. Pioneering.

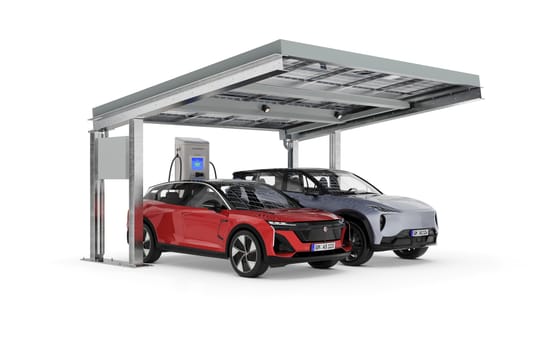

Innovative solar carport made of hot-dip galvanized steel with a covering of resistant 5 mm glass-glass photovoltaic modules.

With the SolarCover solar carport system, we present a sustainable solution that combines vehicle protection and environmentally friendly energy generation in a modern design. The innovative system is ideal for prestigious parking spaces, parking lots or employee parking lots.

For a sustainable future

Innovative, tested and modular

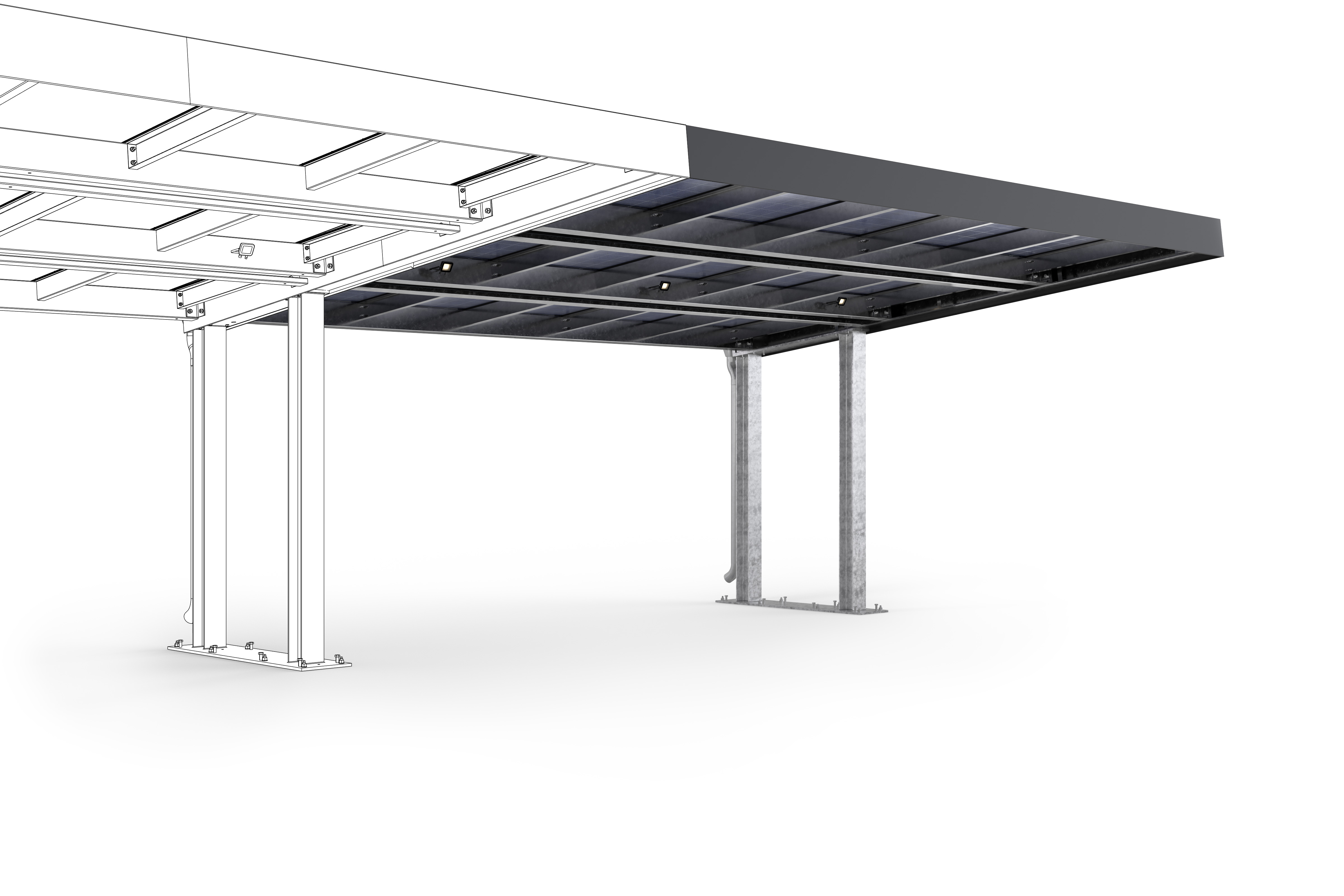

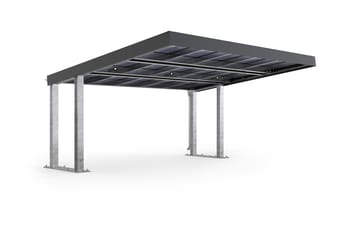

The basic module with two parking spaces can be flexibly extended with additional parking spaces using add-on units - perfect for large row parking facilities. The frame consists of galvanized steel beams, the roof surface is made of 15 robust glass-glass photovoltaic modules with a thickness of 5 mm. Thanks to a rated output of 370 Wp per module, the SolarCover offers an economical solution for large parking lots in particular. The energy generated can be fed into the grid as required or fed into energy storage systems. An intelligent drainage system drains rainwater unobtrusively via one of the supports.

With a designated Snow load of up to 2.5 kN/m², the SolarCover 2.0 is also ideally suited for high altitudes.

The innovative solar carport meets the highest safety standards and has vertical and overhead approval in accordance with DIN18008 as well as system statics up to wind load zone 3 for terrain category 2.

Quick assembly

In a few hours

The sophisticated and modular design consists of just 3 components and can be assembled in just a few hours.

Your advantage: Parking spaces are quickly fully usable again and are not blocked for long.

Shaping a sustainable future - with the WSM SolarCover 2.0!

Your advantages

370Wp per module and 5550 Wp system output
Basic module and add-on units for flexible in-line systems
Tested safety thanks to overhead approval in accordance with EN 12600
System statics with proven Snow load sk of up to 2.5 kN/m²
Quick assembly thanks to pre-assembled modules
